Chamber vacuum machines
-Industrial
Chamber vacuum machines
Industrial - XL 80 duble

Great response to the demands of medium and large enterprises. These vacuum packaging machines completely vital statistics to respond to the demands of several industrial sectors, not only the food industry.

This line of vacuum packing machines can offer unquestionable technological exclusivity, on both sides, and the sides of electronic components (Its multi-functional and multi-program LCD control panel) and a structural point of view (his 6 mm) stainless steel lid, extremely hard working surface and the outer casing. LINE OF JUPITER machines meets the specific requirements for packaging: Cheesecake Factory, factory halls and centers for the behavior of their packaging, as well as the slaughterhouse laboratory centers.



TECHNICAL CHARACTERISTICS /TEHNI
Č
KE KARAKTERISTIKE



 Model

 XL 80 DUBLE

 Structure / Kućište

Inox

 Overall dimension / Ukupne dimenzije

 mm 1900 x900x1150 H

Size of the chamber/ Veličina vakumske komore

mm 2 x (830 x 740x230 H)

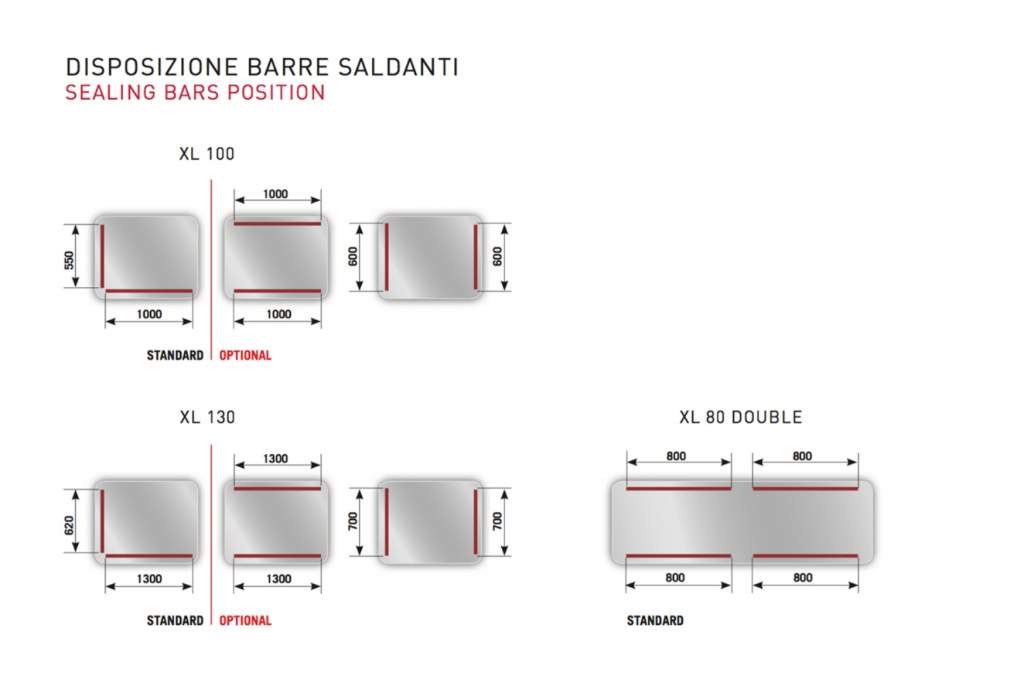

 Sealing bar / Vareća letva

mm 2 x( 2 x mm 800)

Dimensions of packaging materials/Dimenzije ambalažnog materijala

2 x ( 2 x 810 mm x 740 mm MAX

 Vacuum pump / Vakumska pumpa

Q=100 m3h-OIL

Sealing system/ Način zavarivanja:

pulsed- thrust membrane / impulsni- potisna membrana

 Weight / Težina

Kg 360

 Absorption  / Snaga

 W 2500

 Voltage / Napajanje

 380 V/50 Hz

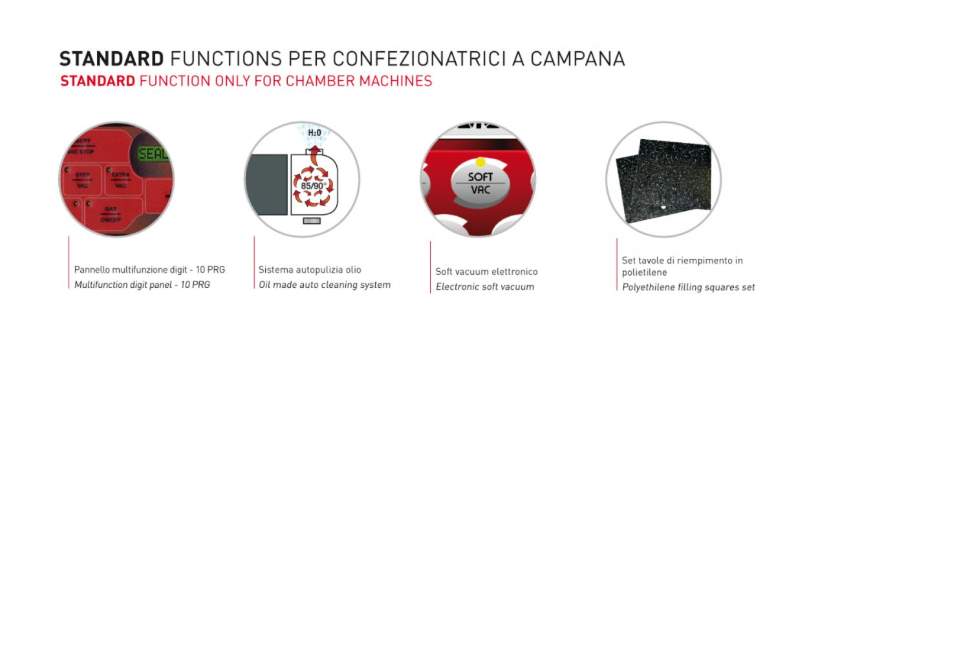

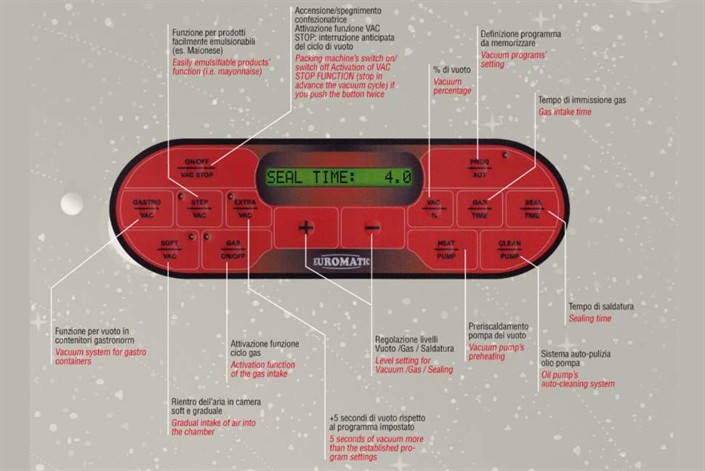

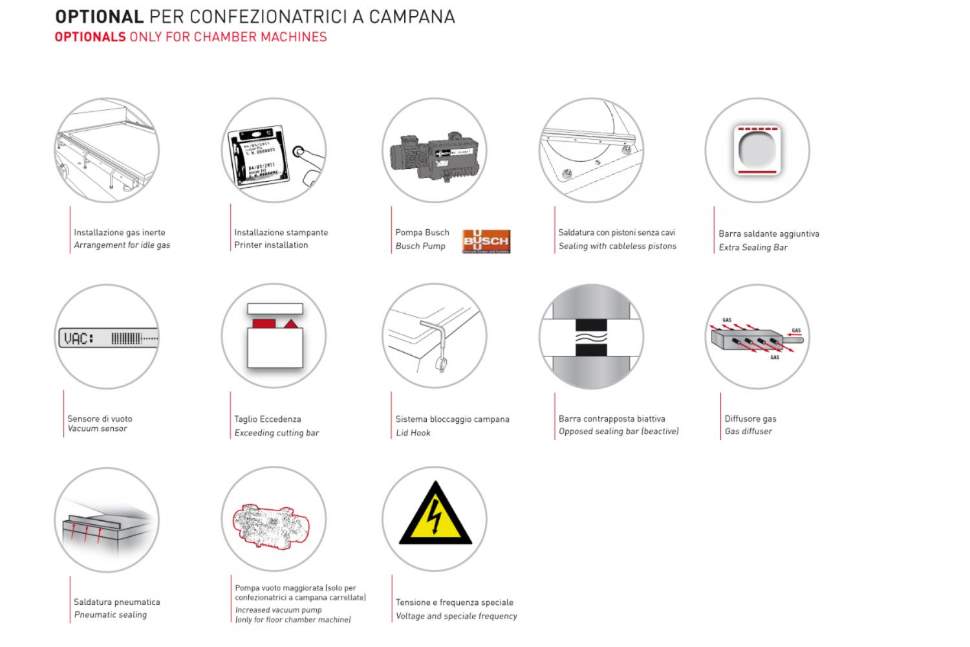

STANDARD FUNCTION; CONTROL BOARD;  ADDITIONAL EQUIPMENT
