Chamber vacuum machines
-Industrial
Chamber vacuum machines

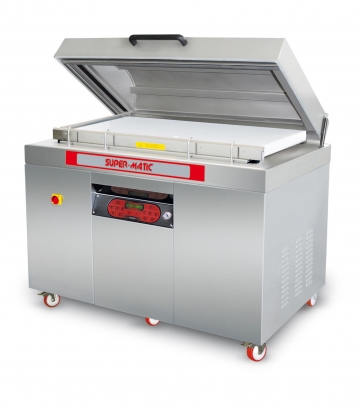

Industrial - XL 130

Great response to the demands of medium and large enterprises. These vacuum packaging machines completely vital statistics to respond to the demands of several industrial sectors, not only the food industry.

This line of vacuum packing machines can offer unquestionable technological exclusivity, on both sides, and the sides of electronic components (Its multi-functional and multi-program LCD control panel) and a structural point of view (his 6 mm) stainless steel lid, extremely hard working surface and the outer casing. LINE OF JUPITER machines meets the specific requirements for packaging: Cheesecake Factory, factory halls and centers for the behavior of their packaging, as well as the slaughterhouse laboratory centers.




TECHNICAL CHARACTERISTICS /TEHNI
Č
KE KARAKTERISTIKE



 Model

 XL 130

 Structure / Kućište

Inox

 Overall dimension / Ukupne dimenzije

 mm 1400 x850x1150 H

Size of the chamber/ Veličina vakumske komore

mm  1300 x 710x230 H

 Sealing bar / Vareća letva

mm 1250+ mm 600

Dimensions of packaging materials/Dimenzije ambalažnog materijala

1 X 1230 mm x 710 mm/ 1 X 580 mm x 1250 mm MAX

 Vacuum pump / Vakumska pumpa

Q=150 m3h-OIL

Sealing system/ Način zavarivanja:

pulsed- thrust membrane / impulsni- potisna membrana

 Weight / Težina

Kg 320

 Absorption  / Snaga

 W 3000

 Voltage / Napajanje

 380 V/50 Hz



STANDARD FUNCTION; CONTROL BOARD;  ADDITIONAL EQUIPMENT
