Chamber vacuum machines
-Industrial
Chamber vacuum machines
Industrial - XL 60

Great response to the demands of medium and large enterprises. These vacuum packaging machines completely vital statistics to respond to the demands of several industrial sectors, not only the food industry.

This line of vacuum packing machines can offer unquestionable technological exclusivity, on both sides, and the sides of electronic components (Its multi-functional and multi-program LCD control panel) and a structural point of view (his 6 mm) stainless steel lid, extremely hard working surface and the outer casing. LINE OF JUPITER machines meets the specific requirements for packaging: Cheesecake Factory, factory halls and centers for the behavior of their packaging, as well as the slaughterhouse laboratory centers.



TECHNICAL CHARACTERISTICS /TEHNI
Č
KE KARAKTERISTIKE



 Model

 XL 60

 Structure / Kućište

Inox

 Overall dimension / Ukupne dimenzije

 mm 900x800x1150 H

Size of the chamber/ Veličina vakumske komore

mm 830x 660x230 H

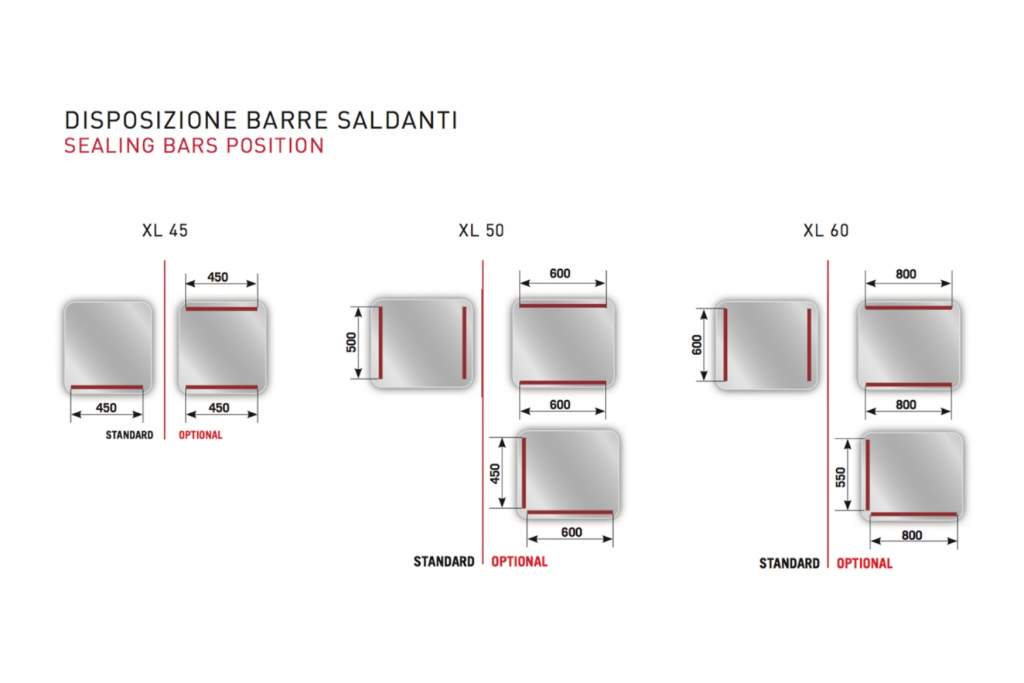

 Sealing bar / Vareća letva

mm 2 X 600

Dimensions of packaging materials/Dimenzije ambalažnog materijala

2 X 580 mm x 300 mm/ 1 X 580 mm x 660 mm MAX

 Vacuum pump / Vakumska pumpa

Q=100 m3h-OIL

Sealing system/ Način zavarivanja:

pulsed- thrust membrane / impulsni- potisna membrana

 Weight / Težina

Kg 220

 Absorption  / Snaga

 W 2500

 Voltage / Napajanje

 380 V/50 Hz



STANDARD FUNCTION; CONTROL BOARD;  ADDITIONAL EQUIPMENT
