Coextruded films

Gallery of Coextruded Films

For details, select the type in the gallery of associated images!






Using the documents available for download, you can better and more professionally define your need for the bags or films you need! Fill out the required Questionnaire with the information you know!







Coextruded films
DORAFLEX ML- lidding and termoforming films
11 layer coextruded film in PA/PE
Thickness 50 – 250 μm

Properties:

Good puncture resistance
Good barrier
High transparency and gloss
Excellent thermoforming and sealing properties
Thickness reduction (up to -20%)

Aplication
Vacuum

Pasteurization

Freezing

Sterilization ETO and Gamma

Machines
Traysealer

Variations
Also aviable in peel version

Coextruded films
DORAFLEX ML PLUS - lidding and termoforming films
11 layer coextruded film in PA/PE
Thickness 230 – 350 μm

Properties:

Excellent puncture resistance
Good barrier
High transparency and gloss
Excellent thermoforming and sealing properties
Thickness reduction (up to -20%)

Aplication
Vacuum

Pasteurization

Freezing

Sterilization ETO and Gamma

Machines
Thermoforming machine



Coextruded films
DORAFLEX MLX - lidding and termoforming films
High barrier 11 layer coextruded film in PA/EVOH/PE
Thickness 50 – 230 μm

Properties:

Good puncture resistance
Excellent gas barrier
High transparency and gloss
Excellent thermoforming and sealing properties
Thickness reduction (up to -20%)

Aplication
Vacuum

ATM

Pasteurization

Freezing

Sterilization ETO and Gamma

Machines
Thermoforming machine



Variations
Also aviable in peel version

Coextruded films
DORAFLEX MLX PLUS - lidding and termoforming films
High barrier 11 layer coextruded film in PA/EVOH/PE
Thickness 280 – 320 μm

Properties:

Good puncture resistance
Good barrier
High transparency and gloss
Excellent thermoforming and sealing properties
Thickness reduction (up to -20%)

Aplication
Vacuum

ATM

Pasteurization

Freezing

Sterilization ETO and Gamma

Machines
Thermoforming machine



Variations
Also aviable in peel version

Coextruded films
DORAFLEX HT
11 layer coextruded film in PP/PA/PE
Thickness 80 – 320 μm

Properties:

Good puncture resistance
Excellent transparency and gloss
Excellent thermoforming and sealing properties
High heat resistance
Thickness reduction (up to -20%)

Aplication
Vacuum

Pasteurization

Freezing

Sterilization ETO and Gamma

Machines
Thermoforming machine


Coextruded films
DORAFLEX HTX termoforming films
11 layer coextruded film in PP/PA/PE
Thickness 80 – 320 μm

Properties:

Good puncture resistance
Excellent transparency and gloss
Excellent thermoforming and sealing properties
High heat resistance
Thickness reduction (up to -20%)

Aplication
Vacuum

Pasteurization

Freezing

Sterilization ETO and Gamma

Machines
Thermoforming machine


Coextruded films
DORAFLEX KF - cooking and sterilization films
11 layer coextruded film in (PA/PP) suitable for heat treatmen (pasterurization)
Thickness 80 – 300 μm

Properties:

High heat resistance (2h up to 100 °C)
High pucture resistance
Excellent sealing properties
Excellent transparency
Thickness reduction (up to -20%)

Aplication
Vacuum

Cooking

Freezing

Pasteurization

Microwave

Sterilization ETO and Gamma

Machines
Thermoforming machine

Traysealer

Coextruded films
DORAFLEX SF - cooking and sterilization films
11 layer coextruded film in (PA/PP) suitable for heat treatmen (sterilization)
Thickness 70 – 270 μm

Properties:

High heat resistance (up to 121 °C)
High pucture resistance
Excellent sealing properties
Excellent transaprency. Thickness reduction (up to -20%)

Aplication
Vacuum

Cooking

Pasteurization

Microwave

Sterilization ETO and Gamma

Machines
Thermoforming machine

Traysealer

Coextruded films

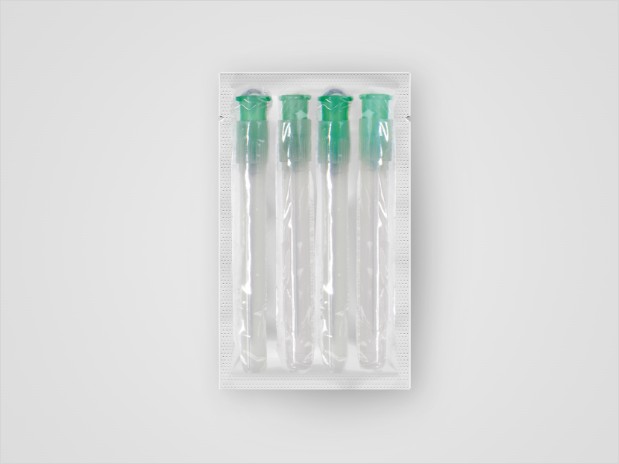

DORAFLEX MED- medical and pharmaceutical films
11 layer coextruded film in PA/PE
Thickness 50 – 250 μm

Properties:

Excellent pucture resistance
Excellent flatness
Excellent sealing properties
Reduced agent content release
Excellent transaprency

Aplication
Sterilization ETO and Gamma

Vacuum

Freezing

Pasteurization

Machines
Thermoforming machine

Traysealer

Coextruded films

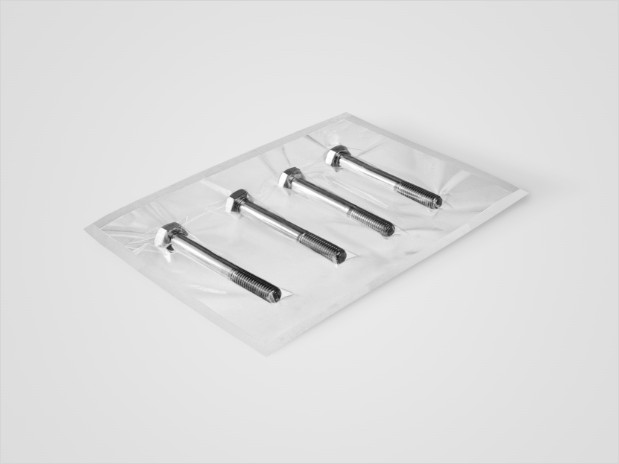

DORAFLEX TECH- technical films
11 layer coextruded film in PA/PE
Thickness on customer need

Properties:

Properties
Excellent flatness
Excellent thermoforming properties
Available in a wide range of bands up to a maximum of 3600mm

Aplication
Sterilization ETO and Gamma

Vacuum

Freezing

Pasteurization

Machines
Thermoforming machine

Traysealer
