UPA Rapid Max







Inox steel ; CE Certifikati
Inox steel ; CE Certifikati
High Performance
High Performance
High reliability
High reliability
Reduced consumption
Reduced consumption
Reduced noise
Reduced noise
Eco-friendly
Eco-friendly
UPA Rapid Max with Scale Dosing Unit

MACHINE DIMENSIONS
Width 2100 mm
Depth 3100 mm
Height 3000 mm

TECHNICAL DATA
Capacity: up to 25 bags/min
Energy supply: 6,5 kW/380V/50-60Hz
Packaging material: sealable material
Bag dimensions: width 300-630 mm
length 300-1200 mm
Film dimension: width 650-1400 mm

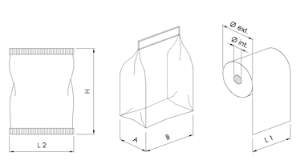

Packaging material and format

UPA Rapid Max

Vertical automatic packaging machine UPA RAPID is able to form, fill and seal the widest range of bag shape of single, double or multi-layer heat-sealable films for different type of products like powders, granulates, liquids ad single pieces. It is used in various sector of goods, such as foods, pharmaceuticals, cosmetics and chemicals.
The machines run with an intermittent movement using a “form-dose-seal” system. The forming collar tube fits the width of the film and can be chosen by the customer in accordance with the desired bag size.
The length of the bag can be determined by a photoelectric cell or by an encoder.
The machines are made of stainless steel and anodized aluminium and are equipped thus with a PLC as a touch-screen in order to assure a constant monitoring of the machine functions and parameters and to diagnose eventual alarms and anomalies.
For satisfying market needs, the machine can be equipped with different accessories: marking or printing system, dynamic control weigher, pneumatic trolley for lift new reel, out-put conveyors, elevator, system for Ethernet connection, photoelectric cell for centering the printing, labeling system, complete automatic lines.

Upgrade Options:


• Conveyor belt systems

• Stacking / systems for counting

Forming boxes •

• Forming Machines

• Devices for Packing Group

• Paletttizer

Dosing Unit

-

• Multi-head scales;
• Linear scales;
• Auger dosing unit;

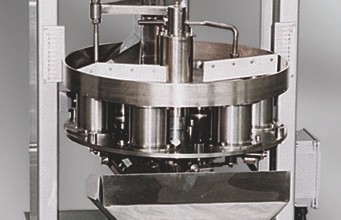

• Volumetric dosing unit;
• Rotating volumetric dosing unit;
• Combined dosing unit for liquids and powders.
