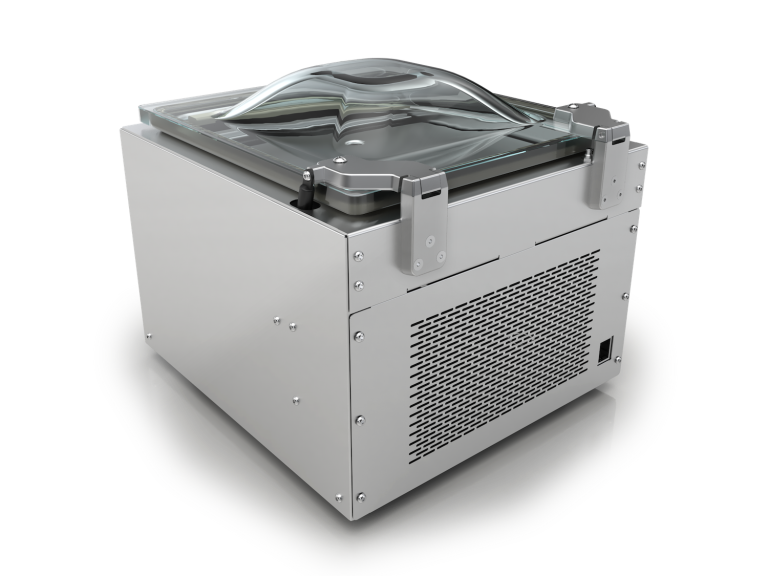

Desk vacuum packing machine- E-VAC

50



Vacuum packing machines in a chamber on a table, suitable for packaging all kinds of products (liquid and solid) and is recommended for restaurants, catering services, supermarkets. The manual for regulating the vacuum and the time it takes, the control of the button is very easy to do, but it always goes hand in hand with: "VAC STOP" and "FAST SECURITY" functions are installed on each individual model in this series.
All models belonging to this line can be equipped with the following options: Gas Injection System, Manual Air Exchanger, pneumatic sealing of the hot jaws. What distinguishes this and machines from its line is the extremely favorable relationship between price and product quality.



TECHNICAL CHARACTERISTICS /TEHNI
Č
KE KARAKTERISTIKE



 Model

E-VAC 50

 Structure / Kućište

Inox

 Overall dimension / Ukupne dimenzije

 mm 620 x650x450 H

Size of the chamber/ Veličina vakumske komore

mm  520x 520x220 H

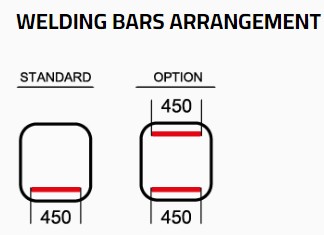

 Sealing bar / Vareća letva

mm 500

Dimensions of packaging materials/Dimenzije ambalažnog materijala

480 mm x 520 mm MAX

 Vacuum pump / Vakumska pumpa

Q= 16 m3h-OIL

Sealing system/ Način zavarivanja:

pulsed- thrust membrane / impulsni- potisna membrana

 Weight / Težina

Kg 67

 Absorption  / Snaga

 W 1250


 Voltage / Napajanje

230 V/50 Hz



STANDARD FUNCTION; CONTROL BOARD;  ADDITIONAL EQUIPMENT
